MT17.0 LE

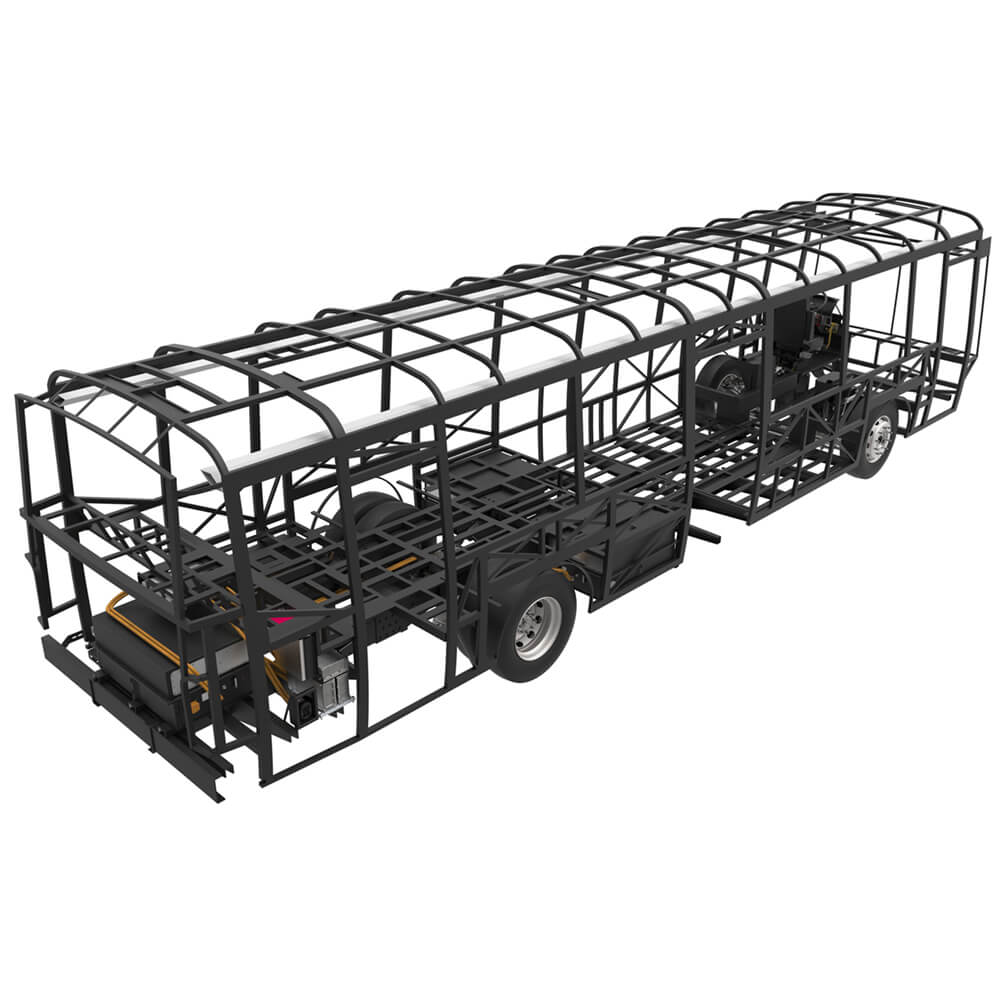

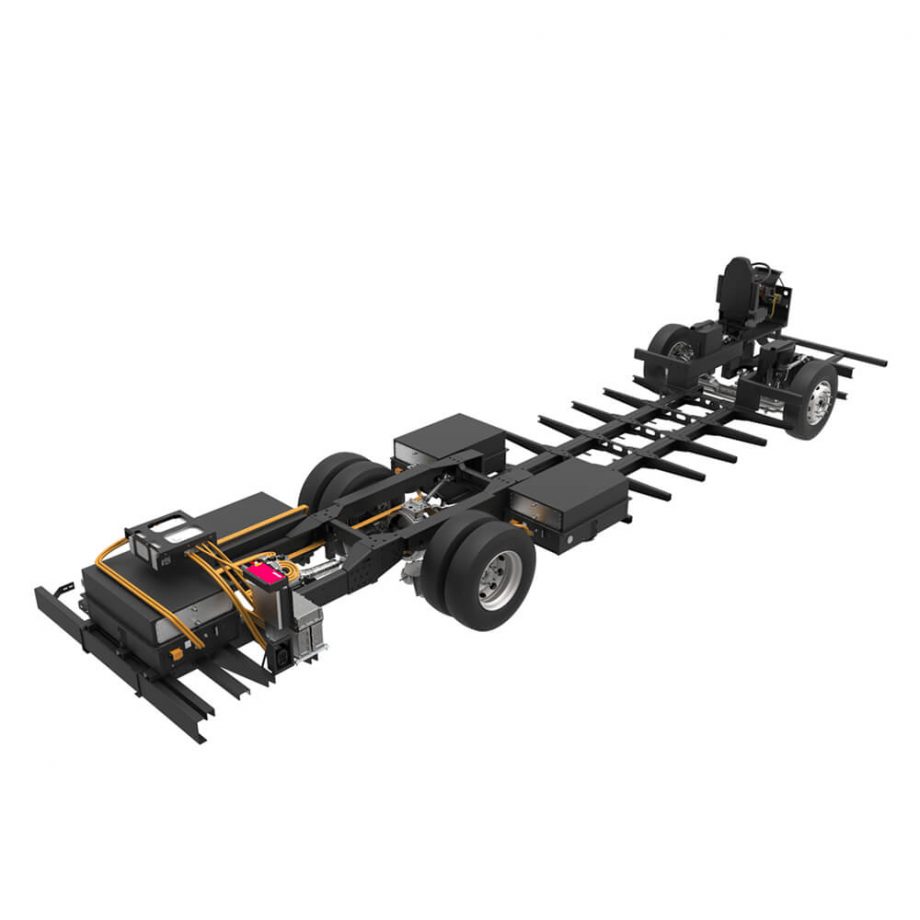

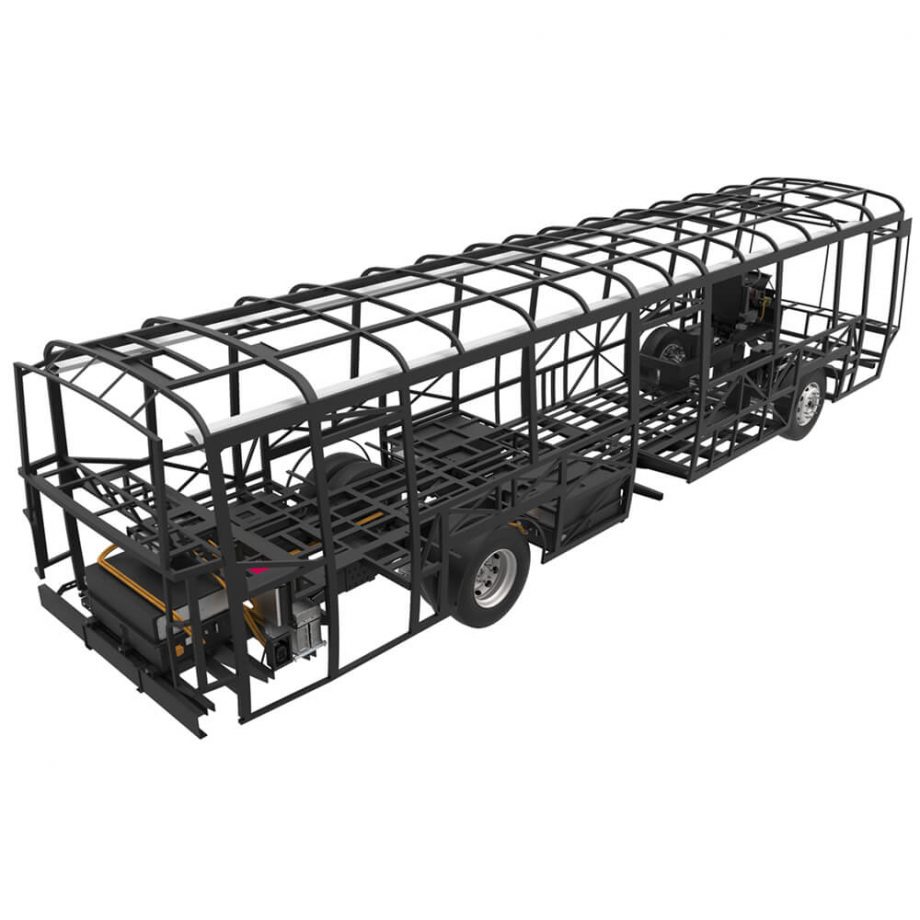

This battery electric bus low entry chassis has been designed to deliver a smooth and emission free ride.

Integrated into the Agrale MT17.0 LE chassis is Equipmake’s advanced propulsion technology; the HTM 3500 motor combines high torque with low motor speeds and is fitted directly onto the propshaft negating the need for a separate gearbox.

The unit produces maximum torque of 3,500Nm at just 1,000rpm and offers maximum power of 400kW. It is driven by a Semikron SKAI inverter with energy stored in a configurable lithium-ion battery pack – with the 390kWh pack being enough for a range of up to 200 miles on a single charge, enabling more than enough daily operating mileage.

MT17.0 LE’s efficiency is made possible by Equipmake’s HVAC, one of the most efficient thermal management systems on the market, which keeps the motor, inverter and battery at optimum operating temperature, featuring a water-glycol cooling circuit augmented by the capture of thermal energy to heat the interior in cold conditions.

When the battery is depleted, it can be simply recharged at the depot overnight using a CSS DC charging point.

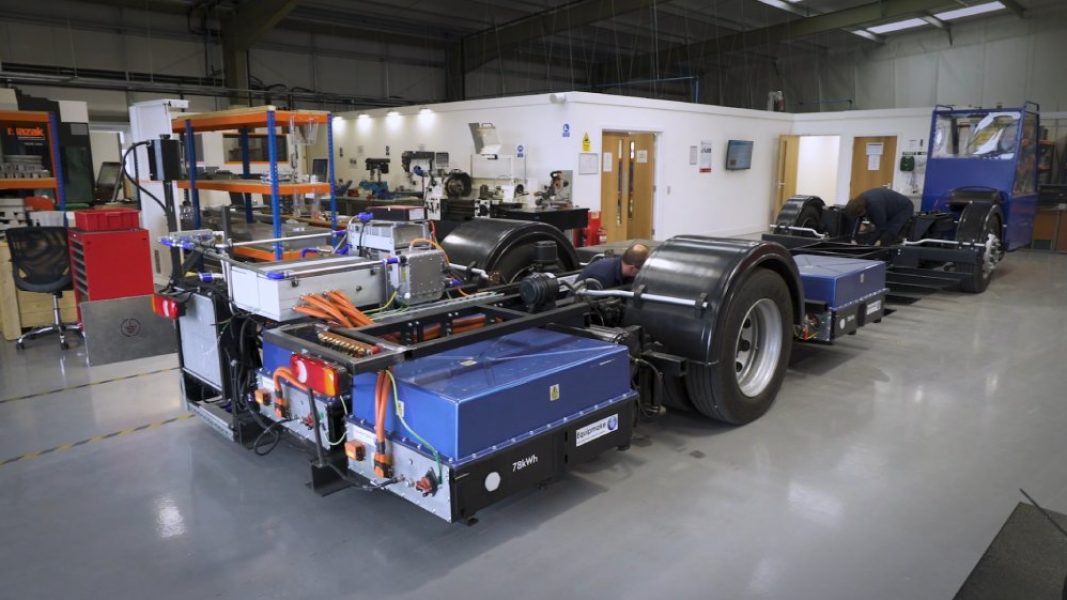

Equipmake partnered with Argentinen chassis manufacturer to develop and build the electric low entry bus chassis MT17.0 LE. The chassis frame is manufactured by Agrale, and powertrain ZED is made by Equipmake.

To download the datasheet please click here and complete the form.

Motor

Equipmake: HTM-3500

Motor Mass: 195 kg

Motor Diameter: 540 mm

Motor Dimensions: 251 mm (W) x 607 mm (H)

Maximum Power: 400 kW

Maximum Speed: 3,500 rpm

Maximum Torque: 3,500 Nm

Coolant Temperature: 60 Deg C Water / Glycol

Motor Options: Single or Coupled

Electric System

System: 750 Volts Nominal

Battery: Li-ion / Pack Options – 236 kWh / 315 kWh / 390kWh

DC – DC Conversion: 24V

Charger: CCS 800 V Connector

Chassis

Type: Low Entry

Front Suspension: Pneumatic

Rear Suspension: Pneumatic

Front shock absorbers: Double action telescopes

Brakes

Service Brake: Drum

Parking brake: Spring Brake 30”

Steering

Model: ZF SERVOCOM 8097

Type: Hydraulics

Turning Circle: 23.80 m

Dimensions

Between axes: 6 m

Vehicle Length: 12 m

Width (outer part tyres) Axle Forward: 2.5 m

Width (outer part tyres) Axle Rear: 2.4 m

Weights & Capacities

PBT Total Gross Weight: 17.000 kg

Chassis weight in running order: 5.703 kg

Front Axle Maximum Load: 6.500 kg

Maximum Rear Axle Load: 11.300 kg

Axles

Front Axle: DANA e1462XW

Rear Axle: DANA S25 171

Standard Reduction Ratio (NS) – 6,14: 1 (other ratios available)

Tyres

Dimensions: 275/80 R22.5

Wheels

Dimensions: 7.50 x 22.5
