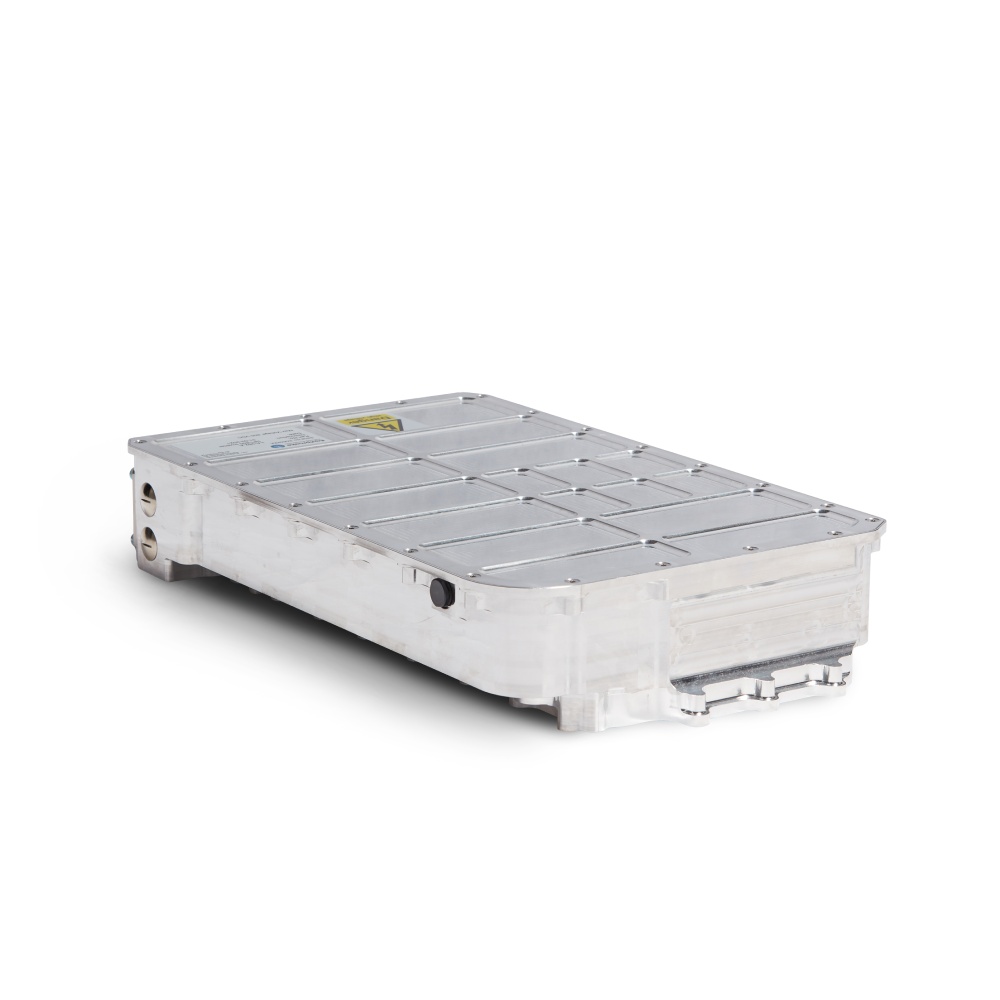

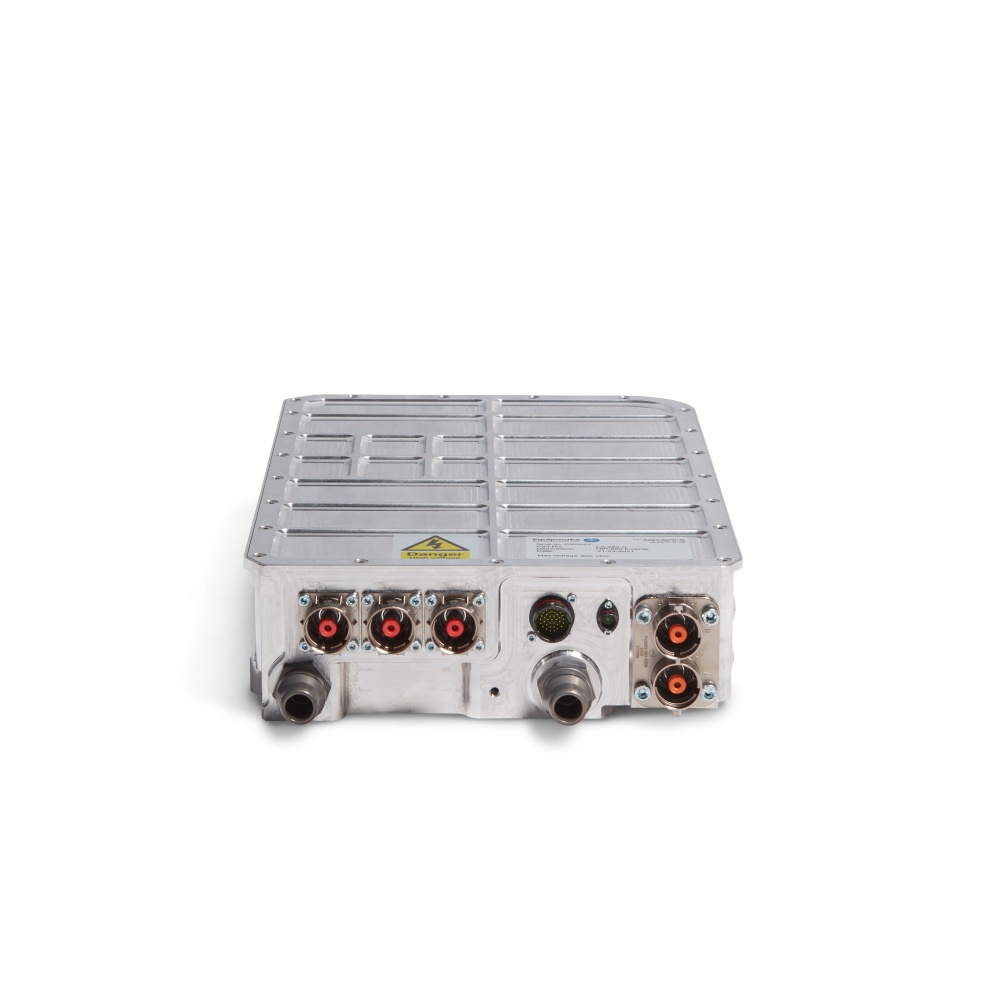

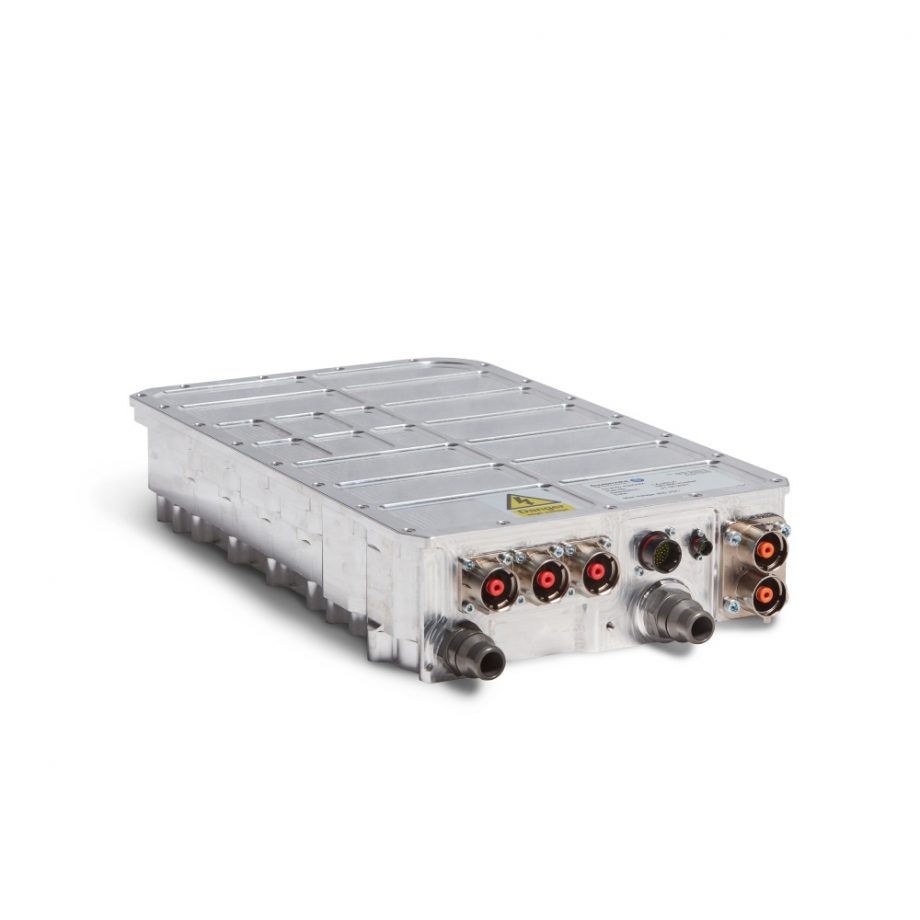

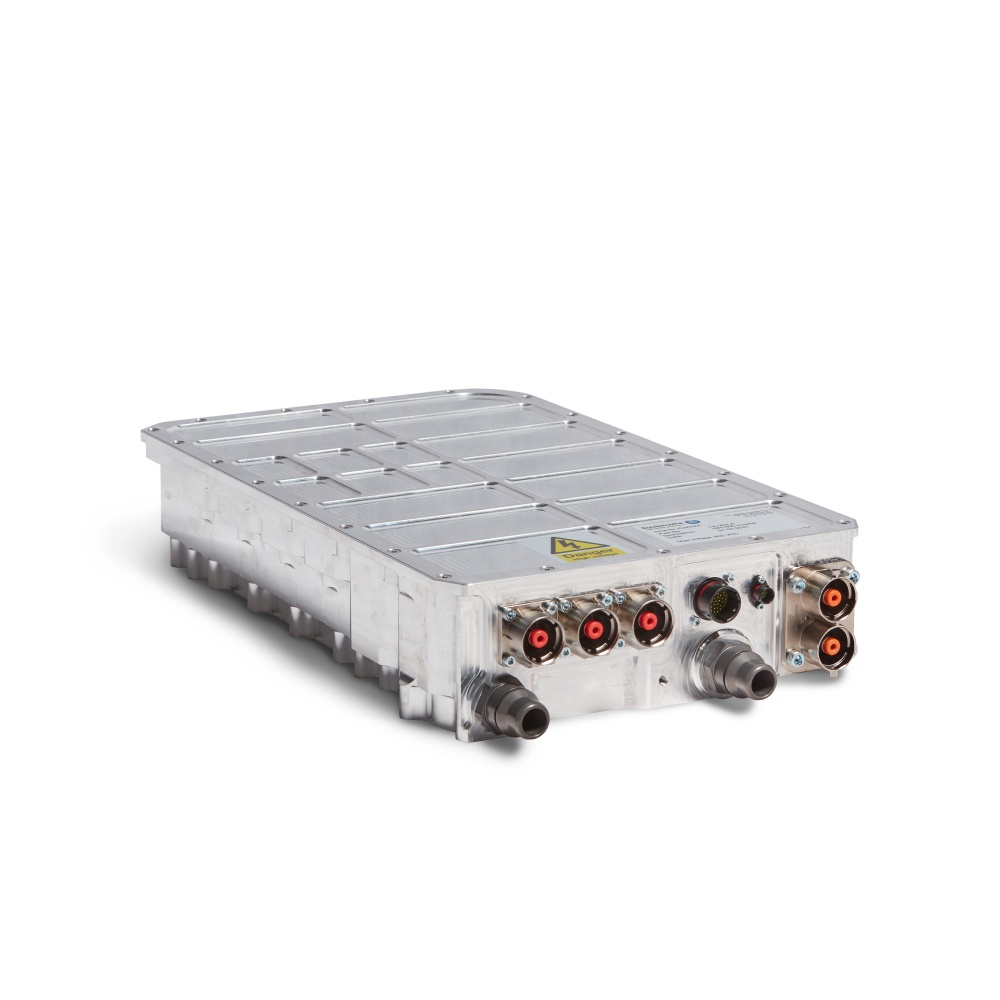

HPI-800

This AC Controller has been designed for highspeed automotive, heavy commercial and aerospace electric EV applications.

Available:

• As a standalone unit
• Complete EV Motor-Inverter unit

For seamless integration and unmatched performance, look no further than our complete EV motor-inverter solutions including: APM-120, APM-200, HTM-3500 and AMPERE.

To download the datasheet please click here and complete the form.

Specification:

Inverter Mass: 12.7 kg

Inverter Height: 94 mm

Inverter Width: 287 mm

Inverter Length: 494 mm

DC Supply Voltage: 400 – 800 V

Maximum Continuous Output Power: 400 kW*

Peak Output Current: 820 A (RMS)

Continuous Output Current: 760 A (RMS)

Switching Frequency: 1 – 40 kHz

Internal DC Bus Capacitance: 600 / ±10% Μf

Efficiency 98%

Auxiliary Supply Voltage: 9 – 32V

Storage Temperature Range: -40 – 85 °C

Non-Operating Temperature Range: -40 – 85 °C

Operating Temperature Range: -40 – 85 °C

Vcc = 800V: 2000 m

Automotive Validation Tests in Progress ISO16750-2, ISO19453-3, ISO16750-4

*motor dependent
