HIPERCAR

Description

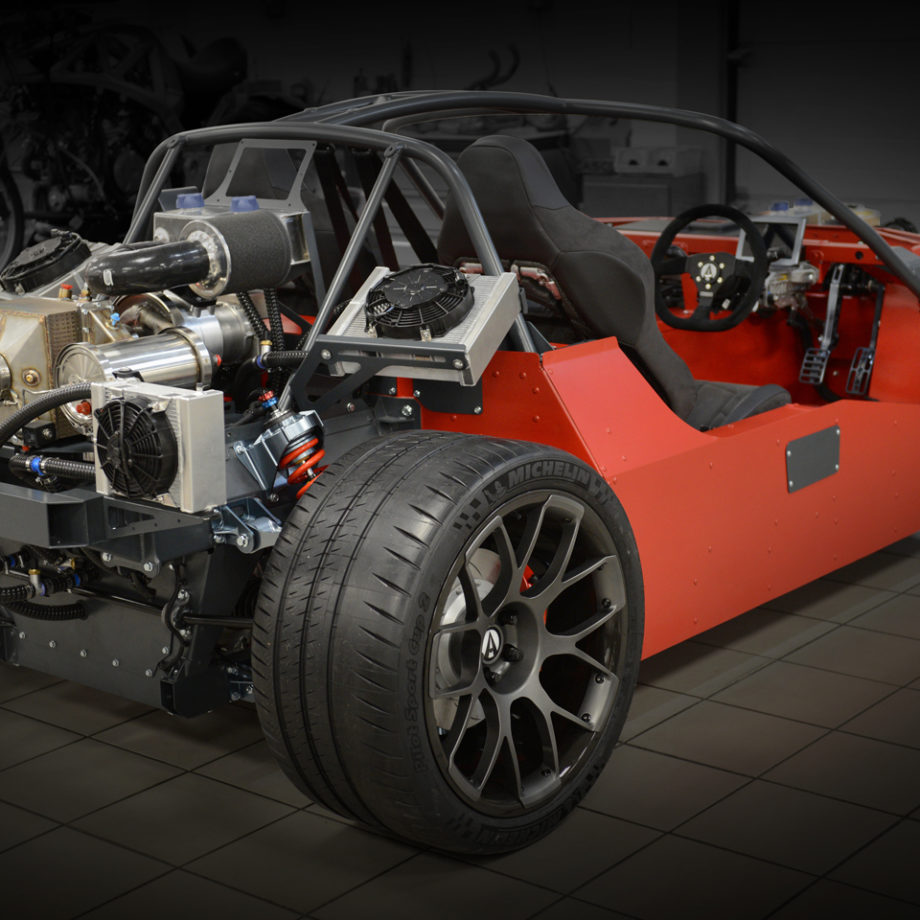

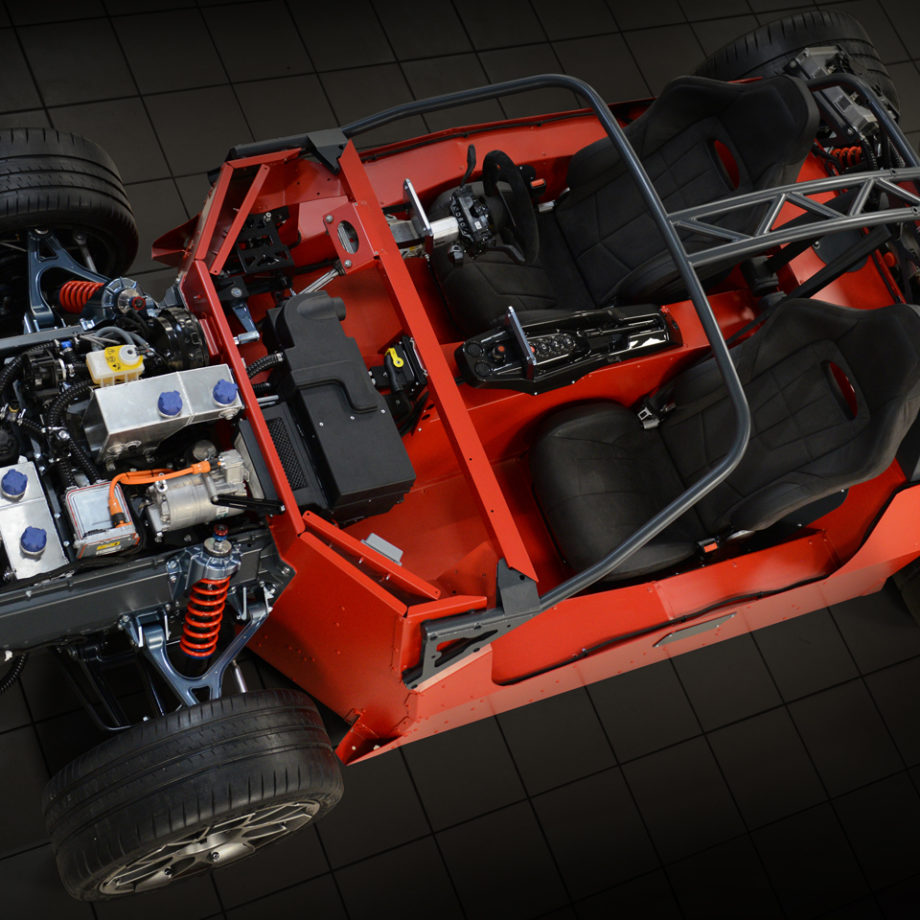

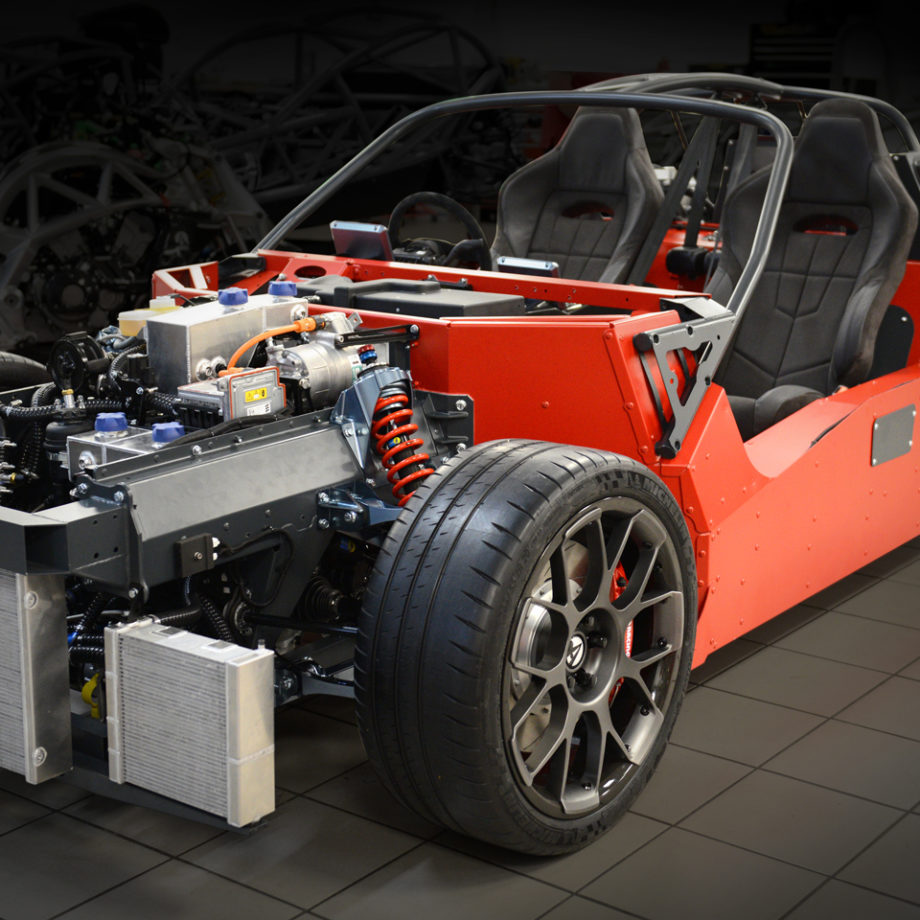

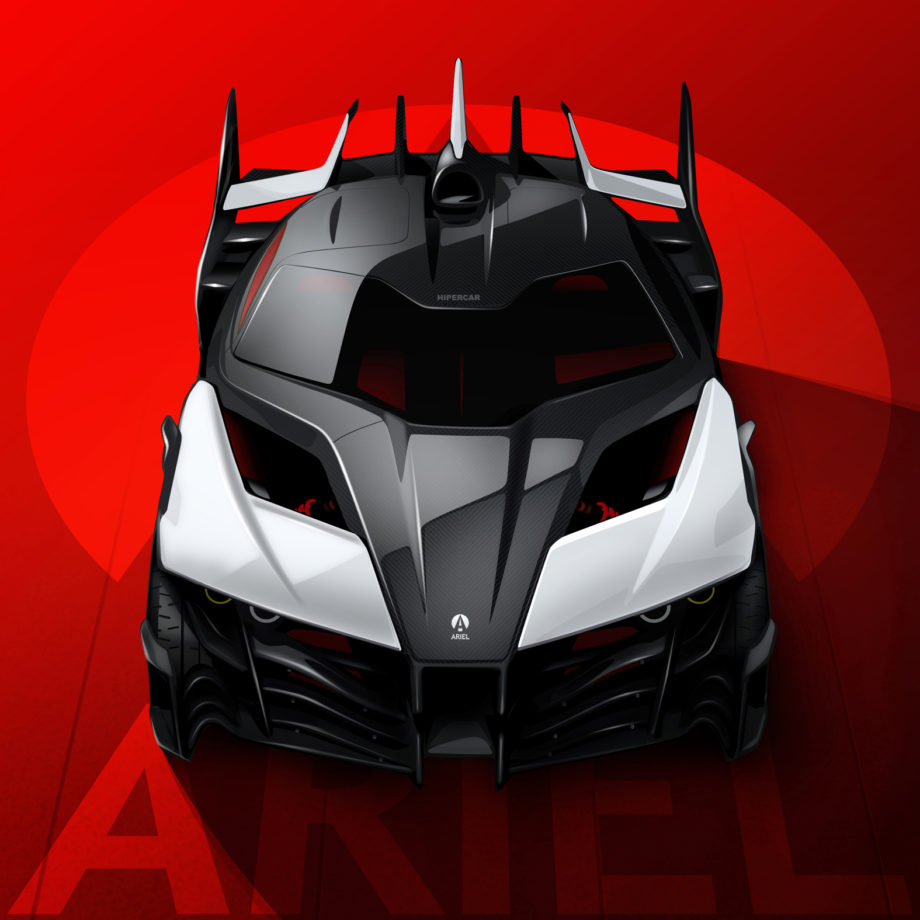

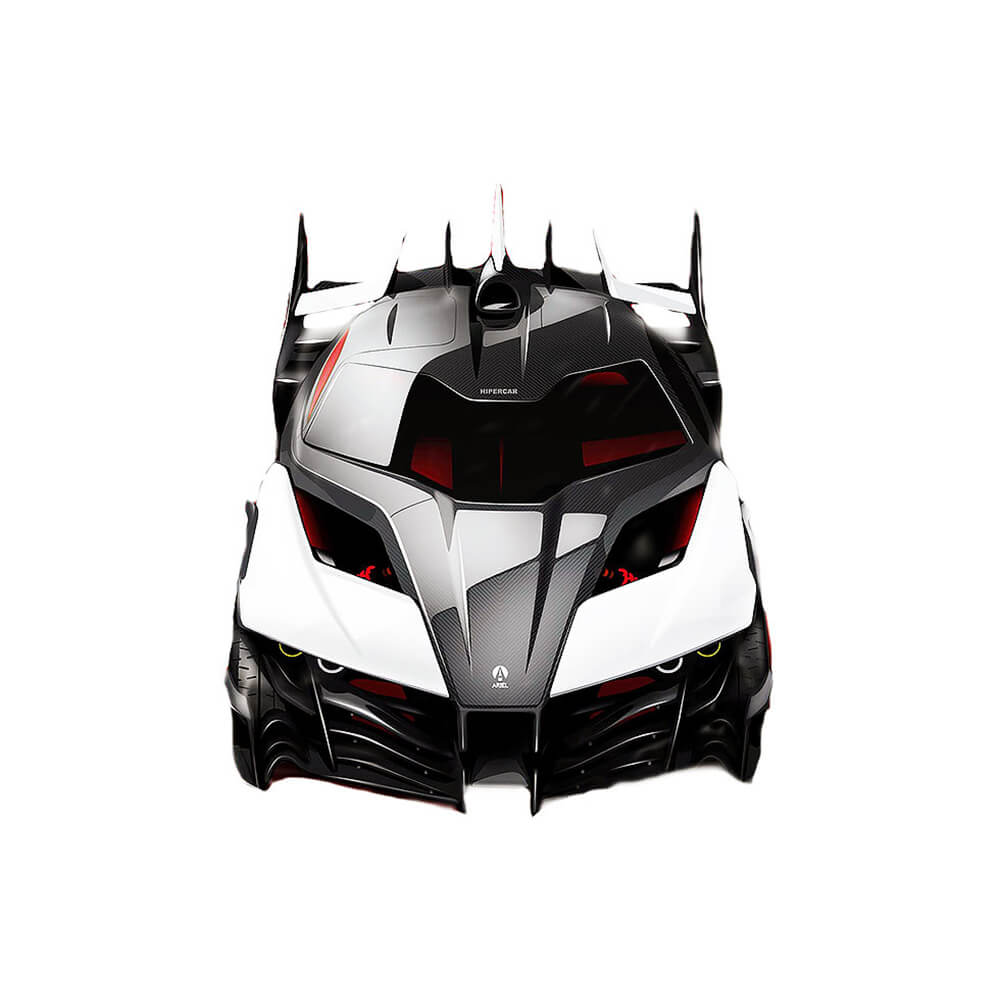

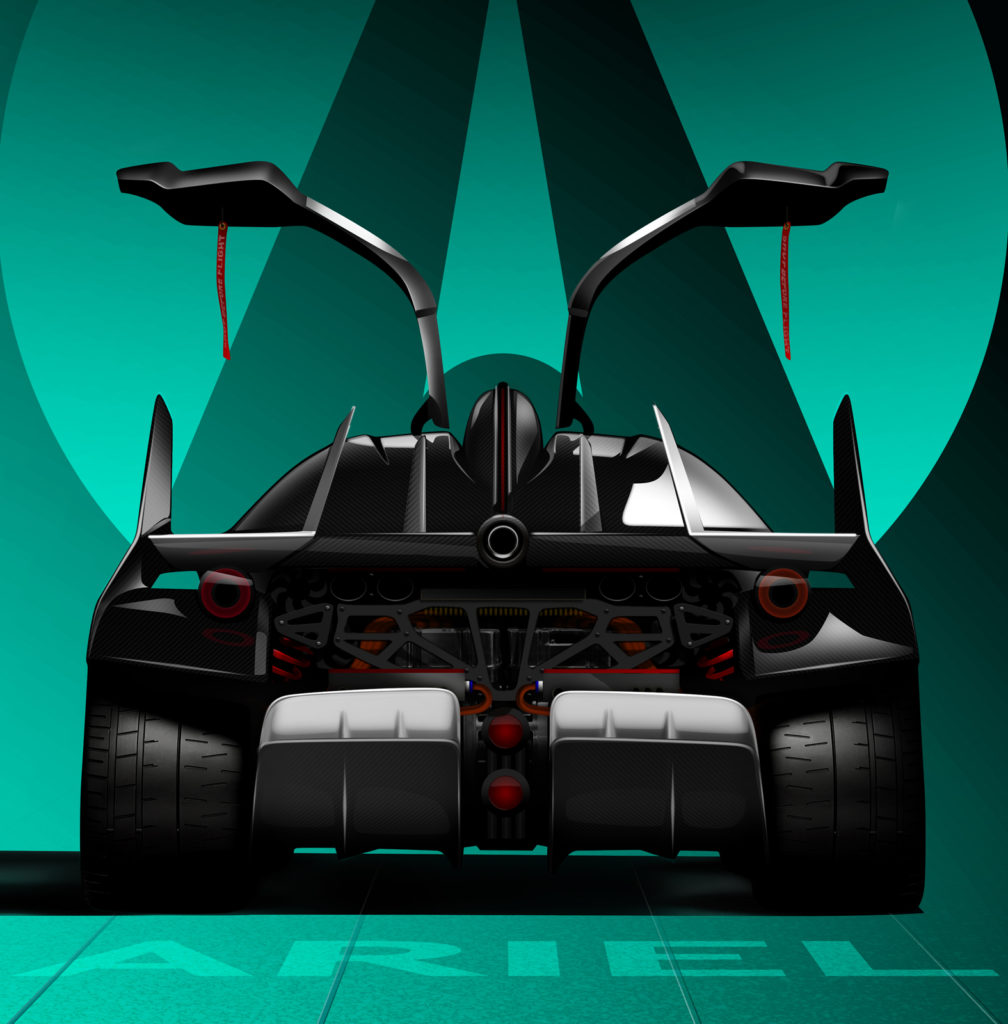

The focus of HIPERCAR is on extreme performance, agility and usability, now coupled with zero and ultra-low emissions. To be available in four wheel drive and two wheel drive variants HIPERCAR will offer staggering performance utilising cutting edge, UK developed technology and will be built in Somerset, England by Ariel.

The APM200 has been designed specifically to meet the requirements of the HIPERCAR and a high-performance traction motor. Its unique spoke architecture enables the rotor to be liquid cooled increasing the motors continuous power output capability. The motor has a maximum speed of 10,000 rpm and incorporates an integral 5.5 :1 epicyclic gearbox which means that the output shaft of the gearbox can be connected directly to the wheel hub. The motor has a peak power of 220kW, and a peak torque of 450Nm.

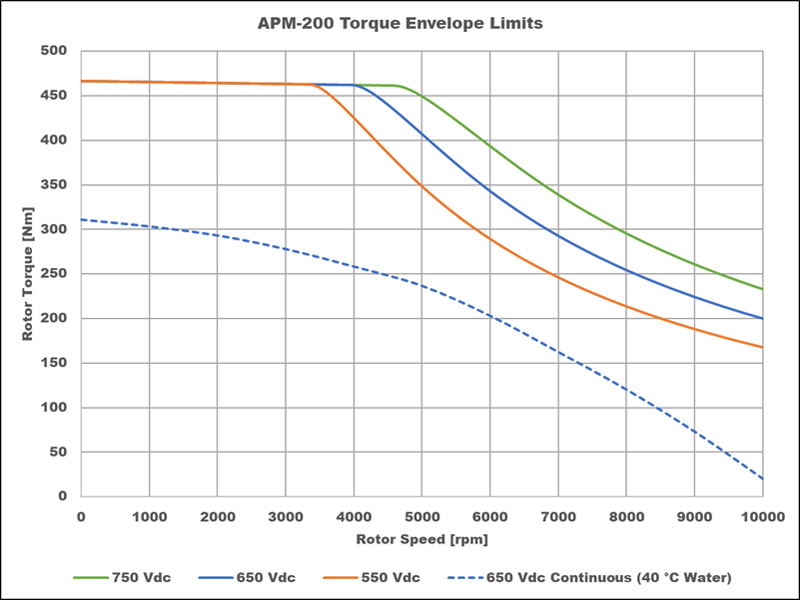

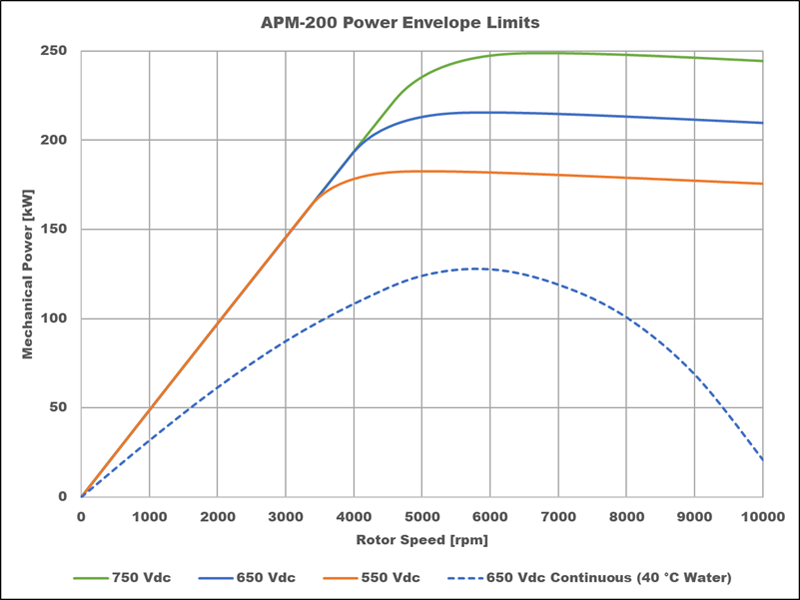

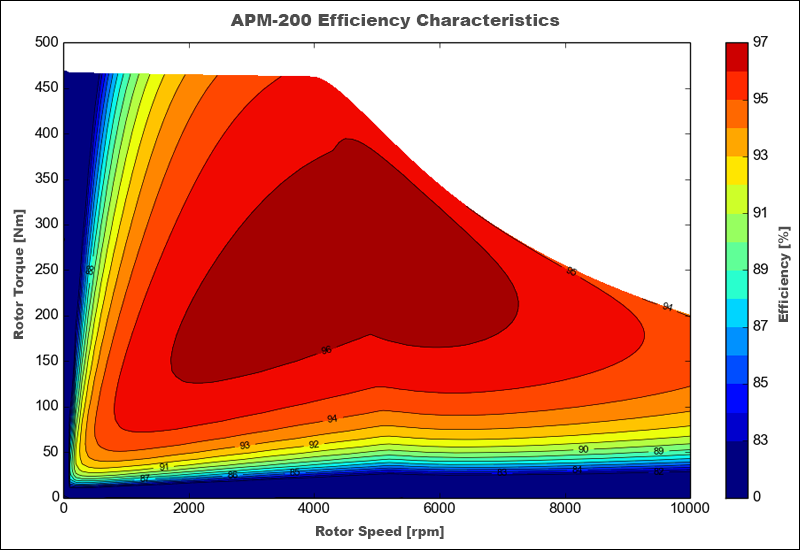

Performance
Datasheet

To download the datasheet please click here and complete the form.
Specifications

Motor Mass 42kg

Reduction Gearbox Mass 9 kg

Integrated inverter Mass 12kg

Motor and Gearbox Diameter 318 mm

Motor and Gearbox Length 247 mm

Maximum Power 220 kW

Maximum Speed (motor) 10,000 rpm

Maximum Torque (motor) 450 Nm

Gear Ratio 5.5:1

Maximum Torque (driveshaft) 2,475 Nm

Coolant Temperature 60 Deg C Water / Glycol

Automotive Validation in Progress BSEN60068-2-6, BS EN60068-2-27, ISO19453-3, ISO60529 X9

As Featured by Top Gear

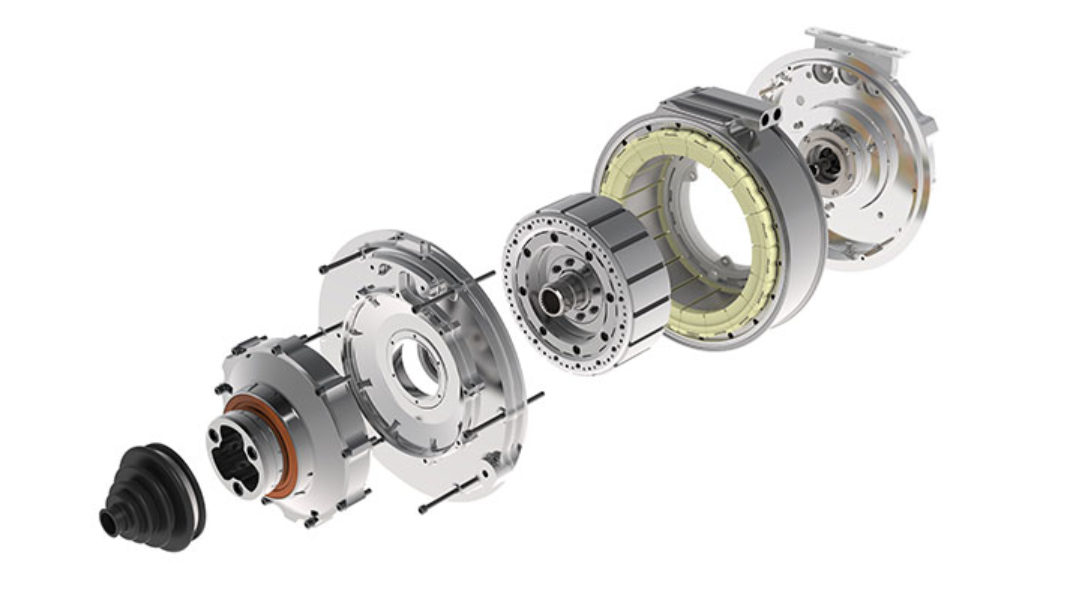

The Spoke Motor

The next generation of the Electric Motor

Equipmake has 20 years' experience in developing and integrating industry-leading electric vehicle powertrains. The APM-200 spoke motor has a maximum speed of 10,000 rpm and incorporates an integral 5.5 :1 epicyclic gearbox which means that the output shaft of the gearbox can be connected directly to the wheel hub. The motor has a peak power of 220kW, and a peak torque of 450Nm. This motor has been used to drive a range of applications from high-speed automotive, aerospace and commercial transport.
