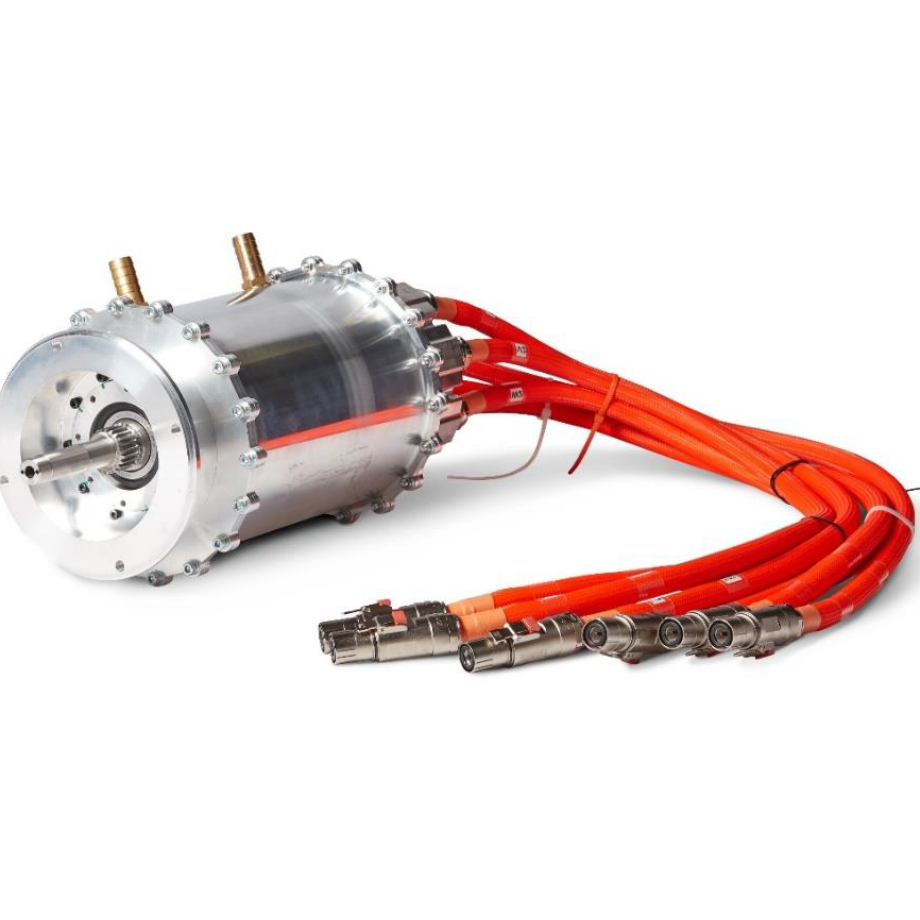

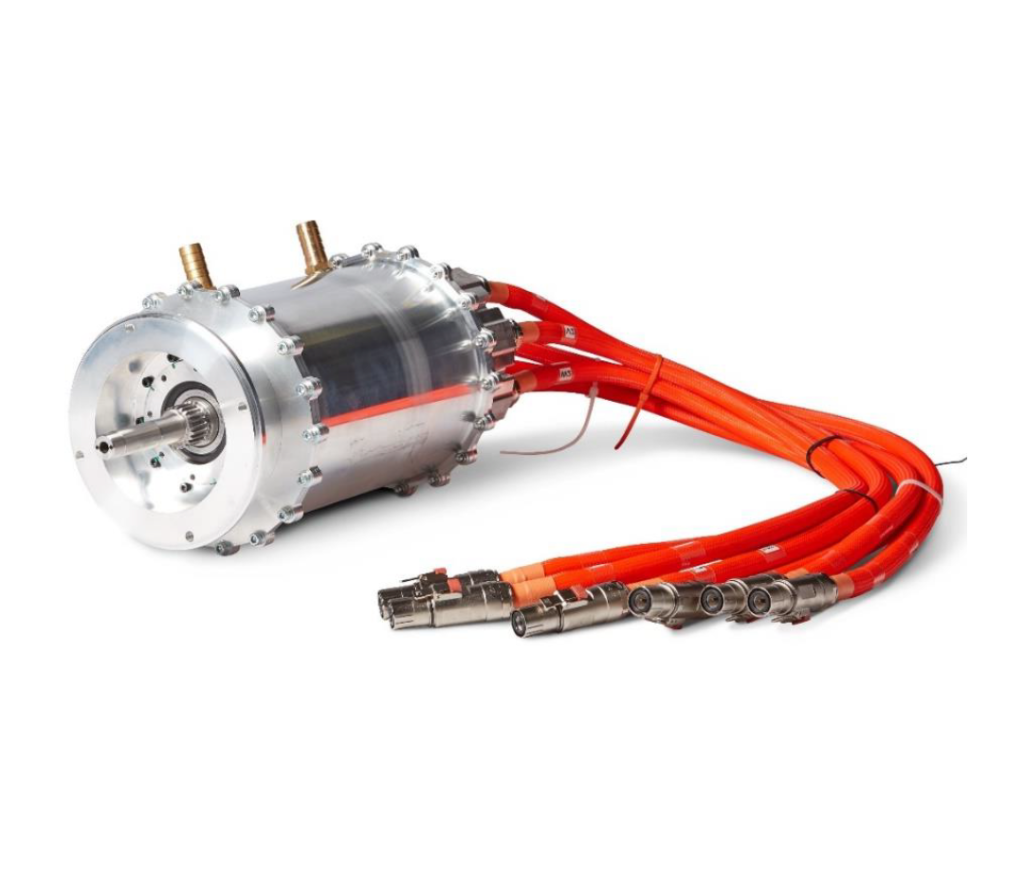

Gilmour Space Motor for onboard application

Specifications:

Fuel Pump Motor:

Dry Mass: 32 kg
Max Speed: 20,000 rpm
Max Torque: 220 Nm
Coolant: Water/Glycol (80/20)

Inverter:

Dry Mass: 9.6 kg
Technology: Silicon Carbide (SiC)
Typical Fsw: 40 kHz
Max AC Current: 1200 Arms
Coolant: Water/Glycol (80/20)

Enquire Here

Description

Equipmake is supplying Australian launch services company Gilmore Space Technologies with electric motors and inverters to support their onboard application

Equipmake developed a bespoke 20,000 rpm onboard application motor and inverter solution. Five systems are required per vehicle, demonstrating Equipmake’s crucial role in advancing spaceflight technology. A total of 21 units were produced and delivered, with the first launch imminent.

The pressurised SiC inverter design allows for compact packaging and low mass critical factors in space launch applications.
Specification
Specifications:

Fuel Pump Motor:
- Dry Mass: 32 kg
- Max Speed: 20,000 rpm
- Max Torque: 220 Nm
- Coolant: Water/Glycol (80/20)
Inverter:
- Dry Mass: 9.6 kg
- Technology: Silicon Carbide (SiC)
- Typical Fsw: 40 kHz
- Max AC Current: 1200 Arms
- Coolant: Water/Glycol (80/20)
