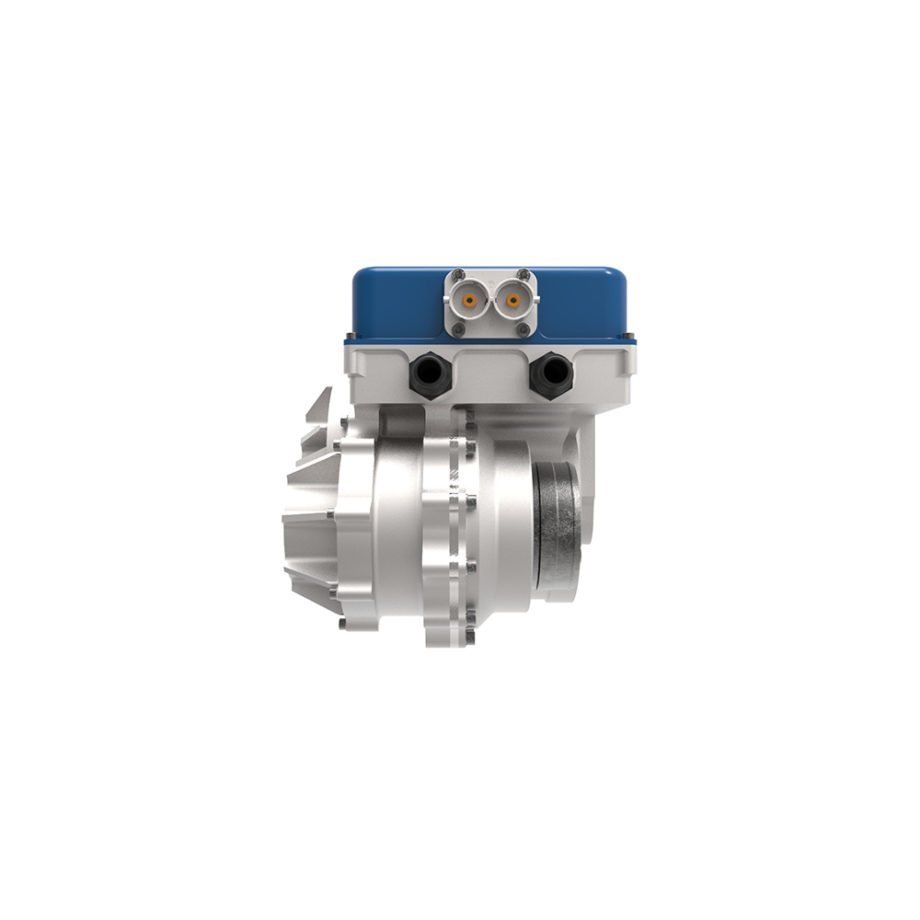

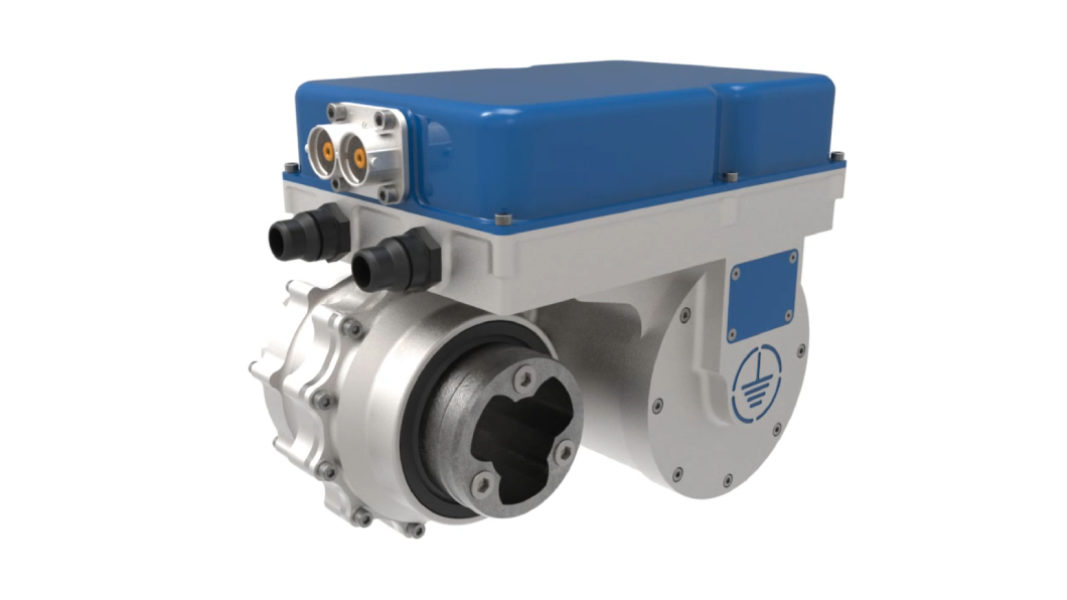

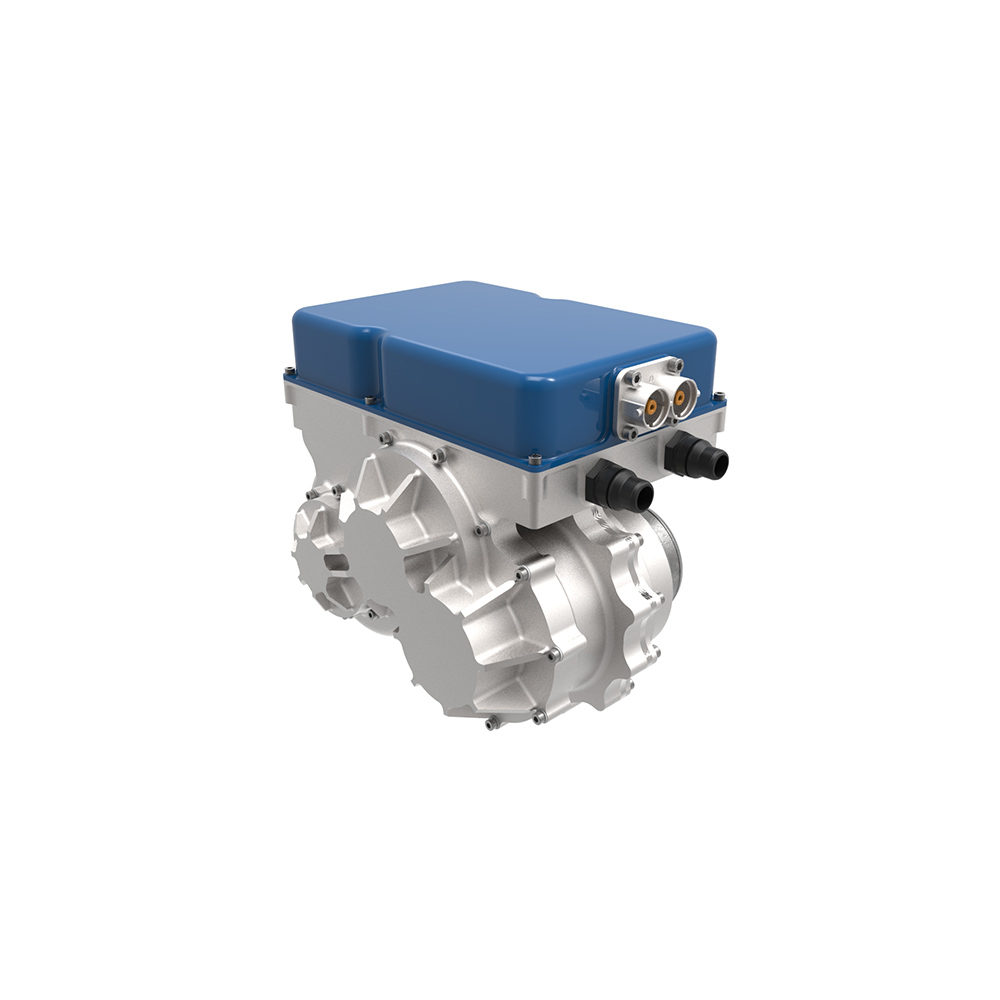

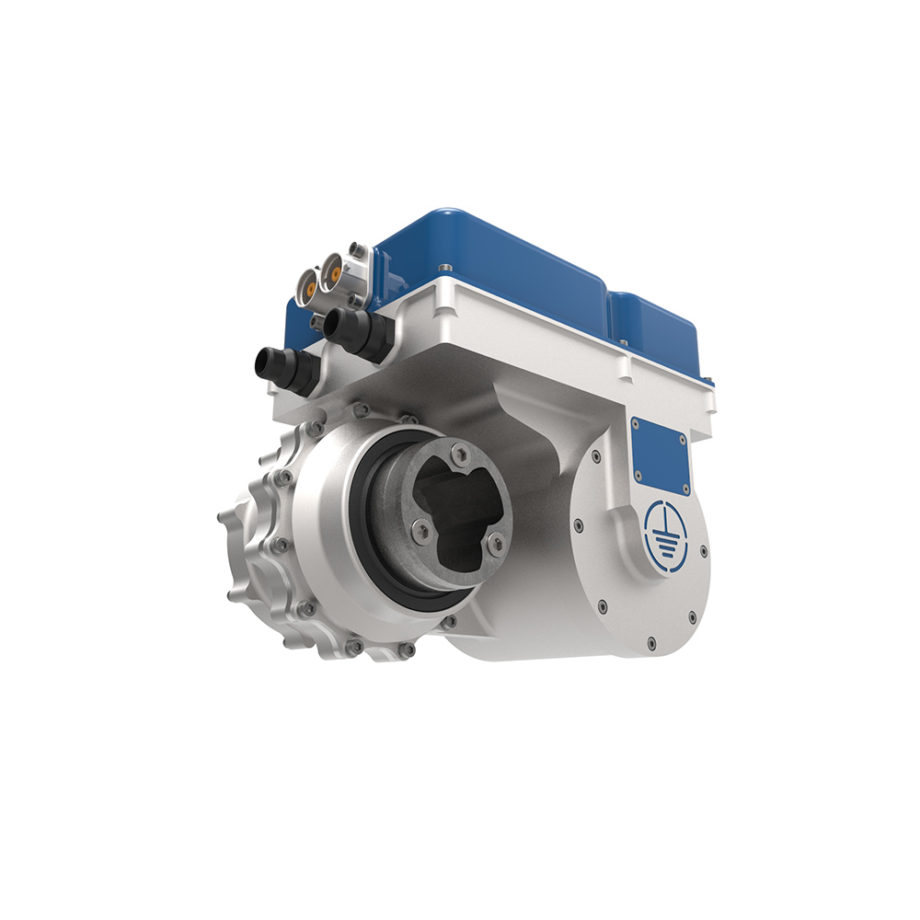

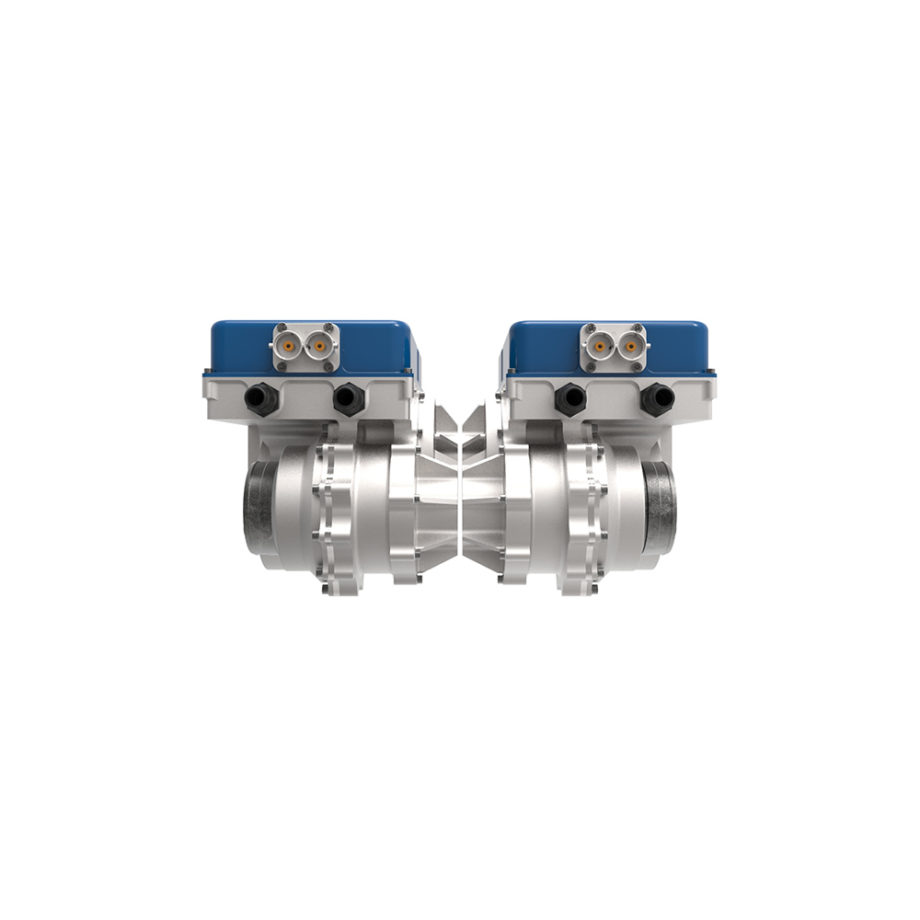

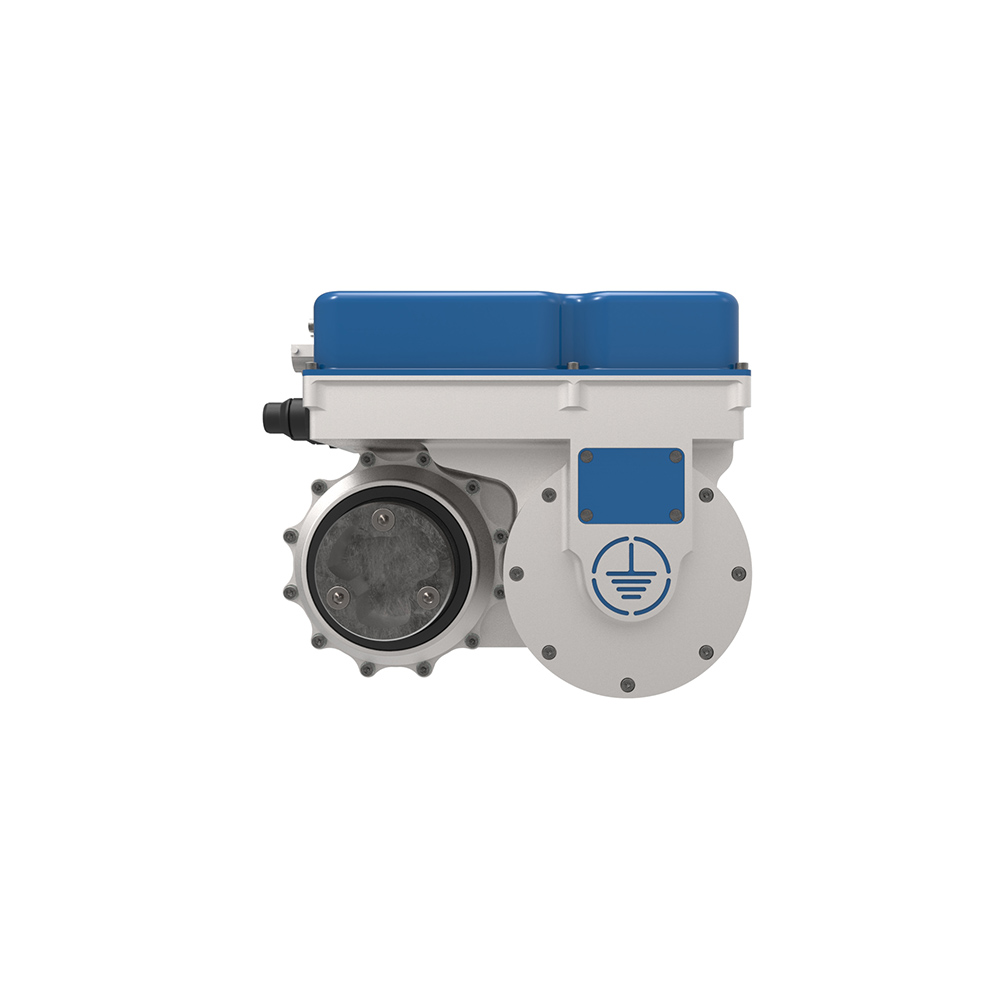

AMPERE-220

The key to AMPERE-220’s performance is a combination of an advanced motor design with additive manufacturing, allowing its metal structure to be 3D printed, rather than milled from a solid billet.

This brings many advantages, in light weighting, cooling ability and cost effectiveness.

Equipmake are targeting peak power of 220kW at 30,000rpm and a weight of less than 20kg.

AMPERE has applications across many sectors, from automotive to aerospace and marine.

The AMPERE-220 is currently in the A-Sample stage of development. However if suitable projects arise, we have the in-house resource to progress this product to it’s projected capabilities.

Click any of the images to enlarge

To download the datasheet please click here and complete the form.

Motor Mass 20kg

Reduction Gearbox Mass 14 kg

Motor and Gearbox Width 290 mm

Motor and Gearbox Length 340 mm

Motor and Gearbox Height 280 mm

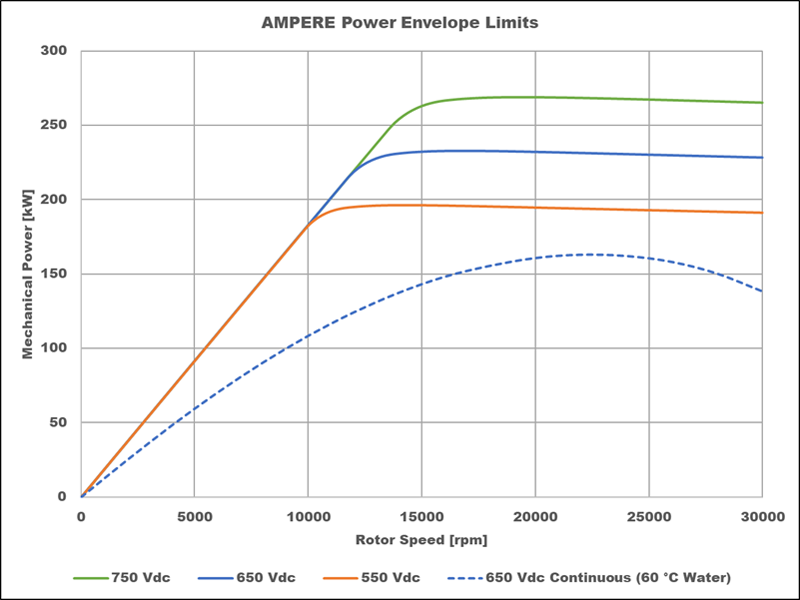

Maximum Power 220 kW

Continuous Power 165 kW

Maximum Speed (motor) 30,000 rpm

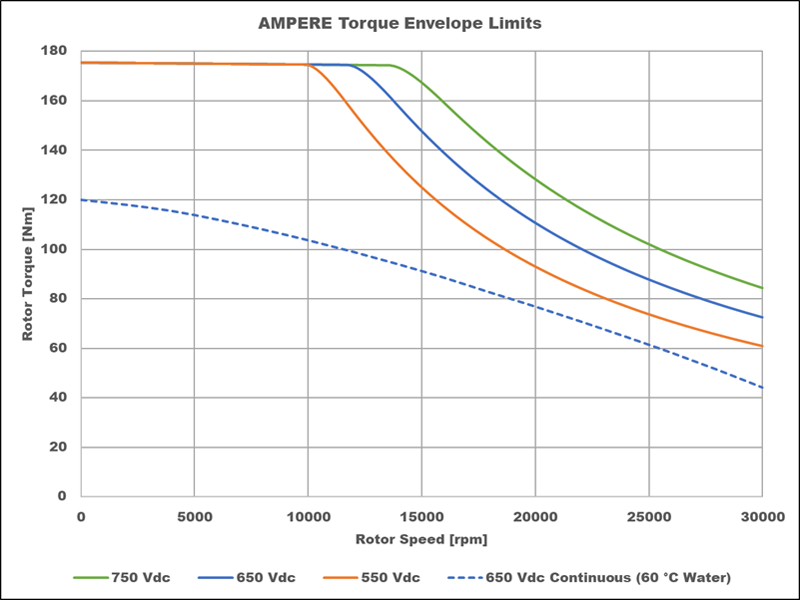

Maximum Torque (motor) 170 Nm

Gear Ratio 14.7:1

Maximum Torque (driveshaft) 2,475 Nm

Coolant Temperature 60 Deg C Water / Glycol
